Name: Three-edge Wear-resistant CVD Coated Milling Cutter Carbide Inserts for CNC Milling
Brand: Chengdu Santon Cemented Carbide Co., Ltd
SKU: Anpassbar
Price: 3.50 USD
Availability: InStock

Markenname:	Santon
Modellnummer:	Anpassbar
MOQ:	50
Preis:	negotiable
Verpackungsdetails:	Plastikkästen nach innen und Kartone draußen
Zahlungsbedingungen:	L/C, T/T, Western Union

Einzelheiten

Produktbeschreibung

Einzelheiten

Herkunftsort:

China

Zertifizierung:

ISO

Grad:

K05-K10

Groove -Typ:

Schruppen / Schlichten

ALIAS:

industrielle Schneidmesser

Farbe:

Goldgelb angepasst

Verwendung für:

Stahl, Edelstahl, Gusseisen

Service:

Nach-Verkaufsdienstleistungen

Beschichtung:

CVD

Produktname:

CNC-Hartmetalleinsätze zum Schruppen von Edelstahl

Versorgungsmaterial-Fähigkeit:

2 Million pro Monat

Hervorheben:

Three-edge Milling Cutter Carbide Inserts

Wear-resistant Carbide Inserts

CVD Coated CNC Milling Inserts

Produktbeschreibung

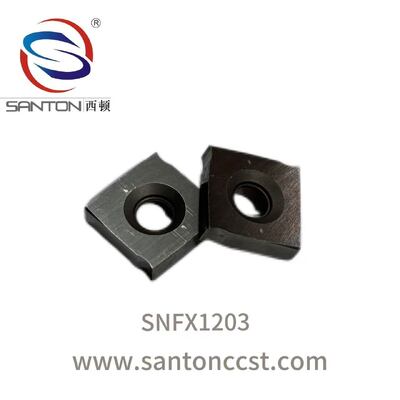

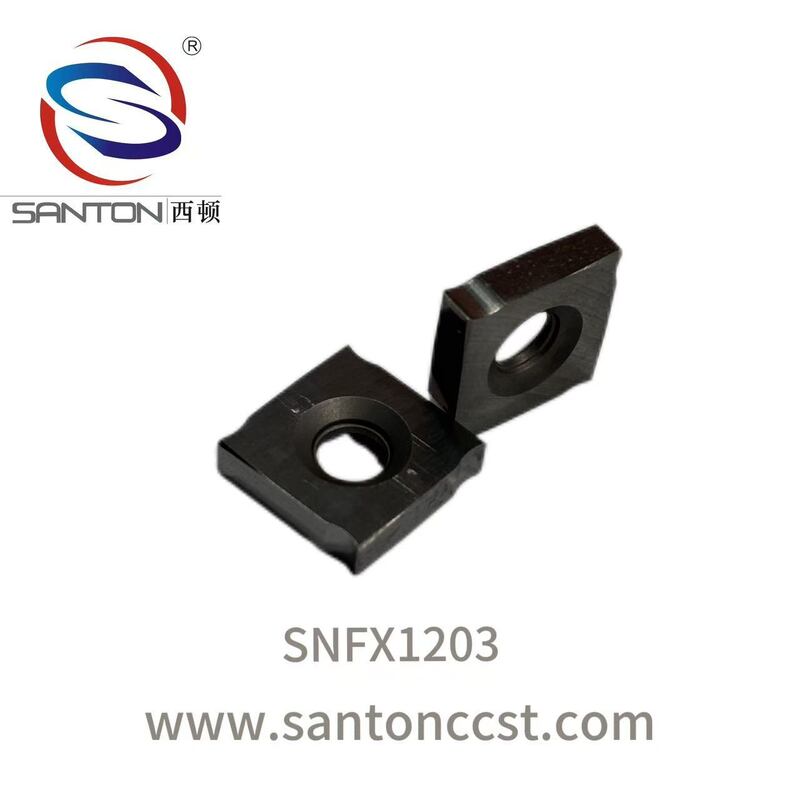

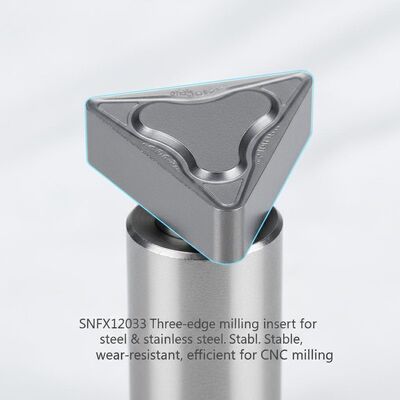

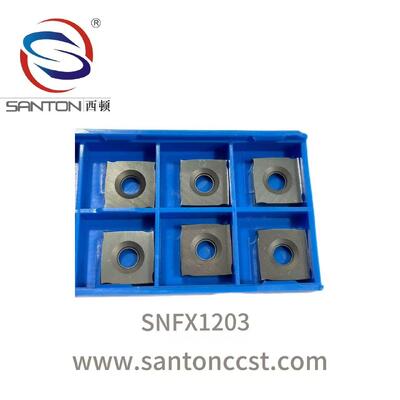

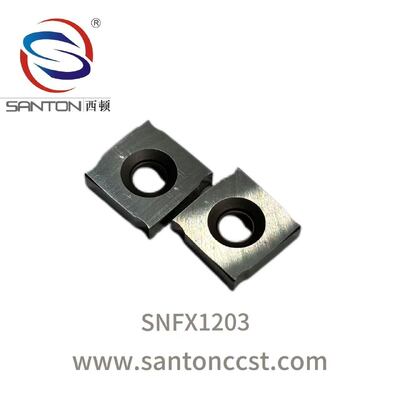

SNFX1203 Three-Edge Milling Insert

High-performance triangular indexable inserts designed for steel, stainless steel, and cast iron applications. Engineered for stability, wear resistance, and efficiency in CNC milling operations.

Product Features

Multi-material compatibility: Suitable for P alloy steel, M stainless steel, K cast iron, H hardened materials, and N aluminum alloys
Optimized slot design: Light cutting capability with smooth chip evacuation for slot milling, side milling, and step machining
High precision manufacturing: Fully ground for stable dimensions and excellent repeatability
Extended tool life: Wear-resistant and heat-resistant coating ideal for high-speed and mass production
Universal compatibility: Works with three-side indexable face mills from various brands

Technical Specifications

Solid carbide CNC tools manufactured through sintering process combining cemented carbide with metallic elements including tungsten, titanium, and tantalum. This advanced composition delivers exceptional heat resistance and superior surface finish quality.

Consistent cutting performance is maintained throughout the tool life, which serves as the primary benchmark for evaluating insert quality in modern production environments.

Grade & Application Specifications

Santon Grade	Density (g/cm³)	TRS (n/mm²)	HRA	Performance & Applications	ISO Code	Other Grade Chain
ST1035	14.35	3300	91.8	Extra fine substrate with high wear resistance and good red hardness. Ideal for semi-finishing and finishing of various cast iron, non-ferrous metals, and non-metallic materials. Excellent for solid carbide hole machining tools.	K30	SK233-1

Certifications

Manufacturer Information

Santon Alloy is a high-tech enterprise specializing in carbide cutting blade research, development, production, and sales. The company provides comprehensive pre-sale, sale, and after-sale services with technology-rich products and application value.

Vertical blade series products represent the core strategic development focus, positioned as "high-end, import replacement" solutions.

Independent Research & Development Materials

ST1015, SK30XF, ST1020, ST1035, ST1040, ST1045, ST1050, ST2030, ST2031, ST2090

OEM Materials

SK231, SK230, SK235, SK410, SK412 - successfully replacing international brands and domestic enterprise materials.

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a professional manufacturer with 10 years of experience producing and selling carbide inserts.

What are your main products?

Our main products include cemented carbide plates, strips, blanks, saw tips, geological and mining bits, brazed tips, indexable carbide inserts, wear parts, snow plow inserts, tungsten carbide pins, and more.

What are your payment terms?

We accept Western Union, Onetouch, T/T, and L/C. Standard terms: 50% T/T deposit and 50% balance before shipment, or against copy of BL, or L/C at sight.

What is your delivery time?

Typically 25-30 days for production. New molds may require an additional 10 days. We can expedite delivery for urgent requirements.

What is your minimum order quantity (MOQ)?

No MOQ limit. For non-standard products, mold fees apply but are refundable later.

What is your warranty policy?

We offer 100% satisfaction guarantee on all items. If not completely satisfied, we'll replace products or refund fees.

Where are your markets?

Our products are popular in Germany, America, Mexico, India, Russia, Indonesia, Malaysia, Bangladesh, South Africa, and other international markets.
